How to add a new slot in Pyleecan

Introduction

Thanks to the Object-Oriented Programming architecture of Pyleecan, adding a new topology (slot, ventilation, holes…) in Pyleecan is rather simple. We will take the opportunity of this simple example to explore in depth all the know-how and hint required to do a great contribution for the entire Pyleecan community. We will present every single step from installing python to doing your first “pull-request” on Github. To do so, we will guide you through several other pages of this website in the correct order and with the proper introduction.

Step 1: Installing Pyleecan

To contribute to Pyleecan the first required tool is… Pyleecan. ou will first need to install Python and an IDE (Integrated Development Environment), then to download Pyleecan. Please follow the procedure to “fork” Pyleecan with git (the “I want to contribute way”), it will be required for the next part of this tutorial.

Step 2: Defining the Slot

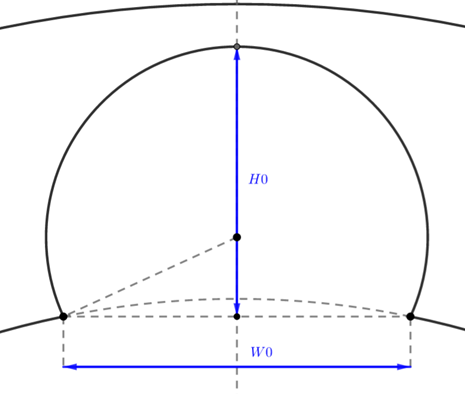

Now that all the tools are installed, the next step is: What are you going to contribute to? The first place to go is the Github issue page. This page gathers all the open topic from bug to correct, to new feature to add or anything to improve… Basically it is the place where the pyleecan community (users and contributors) gather to discuss about what to develop next. For your new slot, first look at the issues to see if you can help the community by developing a slot that was requested in an issue. If you do not find any (or if you just want to do your own) you can open an issue to describe the slot you are about to add. By opening this issue, the community will be able to help you during your development and maybe tell you that the slot is already available somewhere. We can also help you to improve the slot definition so that other people will be able to use it. For these discussions (and for your development) you will need a schematic: an image that shows the shape of your slot and what each parameter corresponds to. To draw your schematics, we recommend to use Geogebra (or any equivalent tool), it will help you to be accurate in the definition of each parameter, which is very important for others to understand and use your slot. In this tutorial we will define a simple circular slot (to be used for notches) named “SlotCirc” and we will use the following schematics:

_images/SlotCirc.png

Step 3: Creating a branch with git

The first step to work on a contribution is to create a “branch on git”. This tutorial explains all the steps required to create your own branch.

Step 4: Creating the class

The first modification needed is to create a new Slot class. In Pyleecan all the class files are created with a tool known as the class generator. A dedicated documentation on this tool is available on the website. In pyleecan/Generator/ClassesRef there is one csv file for each class of Pyleecan (organized by type/folder). To create a new one, copy/paste an existing csv file (for instance SlotCirc), rename it and edit it. The name of your file will be the name of the class and it must be unique within pyleecan. In our example we copy the csv file “pyleecan/Generator/ClassesRef/Slot/SlotW10.csv”, rename it to “SlotCirc.csv” and here is the edited content:

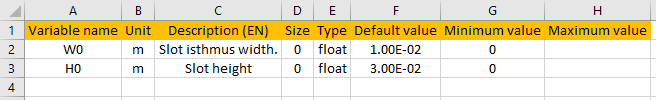

_images/tuto_slot_csv_1.PNG

The “left part” corresponds to the properties of the class. Two lines or two properties has been defined: one for H0 and one for W0. Both are defined to be “float” values greater than 0 and a proper documentation text has been set.

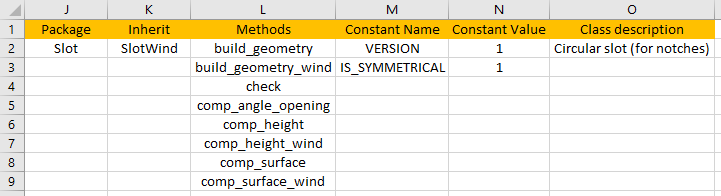

_images/tuto_slot_csv_2.PNG

The “right part” corresponds to global information on the class. We have updated the method list (cf next chapter of this tutorial) and changed the class description. Now that your csv file is properly edited, you need to run the code generator to create the corresponding python code. The corresponding command is: :

python pyleecan/Generator/run_generate_classes.py

The class code is now available in the pyleecan/Classes folder. You can have a look at the resulting code to see what method and feature are automatically available but this file mustn39t be edited as it is erased every time the code generator is called. To change a class in pyleecan, one must change its csv file and run the code generator.

Step 5: Defining your methods

Choosing which method to implement

In this part, we will finally write the first lines of code! And we have a great news: you do not have to write most of them! With Object Oriented Programming to add a new slot (with winding), the following list of method are needed:

  • build_geometry: define the edges of the slot

  • build_geometry_wind: define the surfaces for winding

  • check: Check the slot constraints

  • comp_angle_opening: Compute the opening angle of the slot

  • comp_height: Compute the height of the slot

  • comp_height_wind: Compute the height of the winding part

  • comp_surface: Compute the surface of the Slot

  • comp_surface_wind: Compute the surface of the winding part

The conventions linked to these methods are defined in the following article.

In this list, build_geometry and build_geometry_wind are the only two mandatory methods to define. All the other can be computed numerically according to the result of these two methods. The numerical computation code is defined as methods of the Slot or SlotWind classes. The other methods (comp_surface, comp_height,…) can be defined to provide a faster analytical way of computing these values. We recommend defining all the methods, but the fastest way to add a new slot is just to define build_geometry and build_geometry_wind. Once you know which method you want to define, the “Methods” column in the csv file can be edited if needed (don39t forget to run the code generator).

Creating the Method folder

In pyleecan, all the methods are stored in a dedicated folder that follow this generic path pyleecan/Methods/\<package62/\<class_name62/\<method_name62.py. In our example we need to create the folder pyleecan/Methods/Slot/SlotCirc. You will also need to add an empty file named “init.py” so that the methods can be imported in other part of pyleecan. The full folder of SlotCirc can also copy/paste/edit as a template. A file for each of the method listed in the csv file (build_geometry.py, comp_surface.py…) is needed. Note that if a method is present in the Methods folder but not referred in the csv file, it will not be available in the class. The csv file is the exhaustive description of the class.

Defining the build_geometry method

For the build_geometry method, the first step is to compute the complex coordinates of each point on the edges of the slot. Note that for some slot we encapsulate the computation of the coordinates in a method named “_comp_point_coordinate”. Then a list of “Line” objects is created to describe the slot edges with the following constraints:

  • The slot is centered on the 0x axis

  • The lines are ordered in trigonometrical way

  • Each Line begins with the end point of the previous one

  • Both the first and last point are on the bore radius (abs(Z)=Rbo)”.

“Line” is an abstract class with the following daughter objects:

  • Segment: A straight line between two points.

  • Arc1: An arc of circle defined by two points and a radius.

  • Arc2: An arc of circle defined by a starting point, a center and an angle.

  • Arc3: Half a circle defined by 2 points and a direction.

The code of the other slots can be used as inspiration to define this list of Lines.

For SlotCirc, the build_geometry method returns a list with only one Line object. We compute the Z1 and Z2 coordinates to match W0 then we compute the radius of the circle according to H0 to define the corresponding Arc1.

Defining the build_geometry_wind method

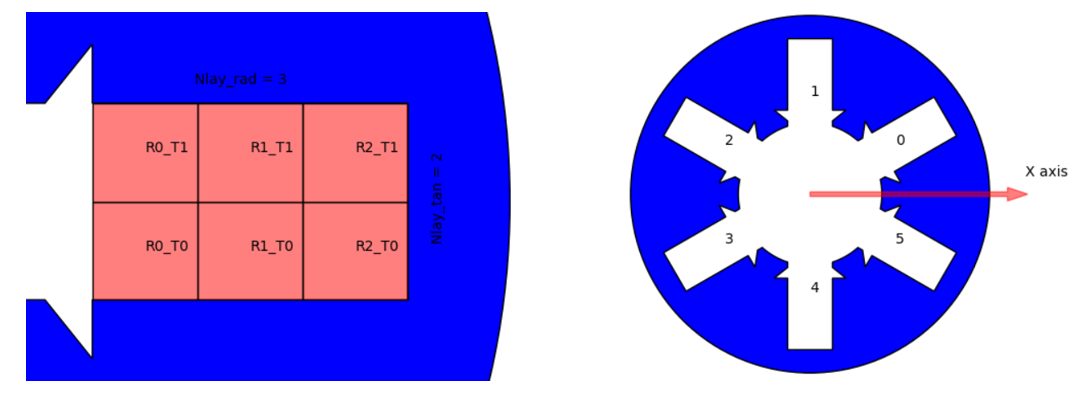

build_geometry_wind defines the “Winding area”. It creates several SurfLine objects according to the number of requested surface/layers. Each surface must be labeled: Wind\<S or R62_R\<Radial id62_T\<Tangential id62_S0 With \<S or R62 for Stator or Rotor and the radial and tangential id are defined as follow (left image):

_images/winding_convention_1.PNG

To create a SurfLine object, the list of lines on the edges of this surface and a “point_ref” (a point in the surface where we can apply the property for FEA software) are needed. The code from other slots can again be used to understand how the surfaces are defined. There is also the possibility to ask for help in the issue related to the slot.

For SlotCirc, the slot is intended to be used for notches so it shouldn39t contain winding. But maybe someone want to add winding in such slot, so we defined the winding related methods anyway. We define the “Winding area” to be the complete slot surface. To define the original surface, we just need to add an Arc1 between Z2 and Z1. Then we proceed to “cut” this surface according to Nrad, Ntan.

Defining the other methods

All the other method should be more straight forward with the indication from the slot conventions. Otherwise, ask for help in the issue related to the slot.

For SlotCirc, as the winding area matches the complete slot, comp_surface and comp_surface_wind as well as comp_height and comp_height_wind return the same values.

Docstring and documentation

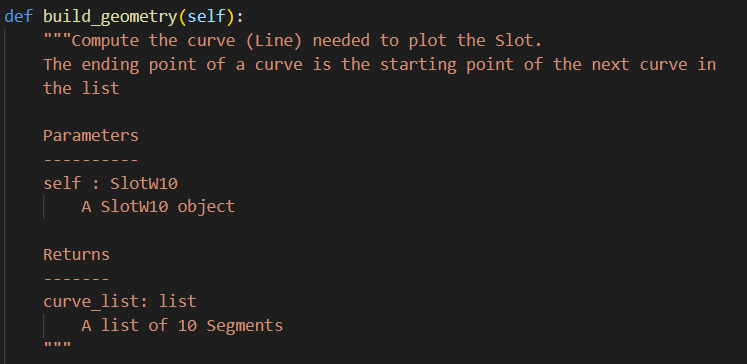

Each method has a dedicated docstring that can be copy/paste/edit:

_images/tuto_slot_docstring.PNG

These docstrings are important since they are automatically scanned to generate this website. So please always provide some well-defined docstring, it will help others to use the slot.

Step 6: Integrating your contribution into PYLEECAN

Now that your slot is ready, you need to share it with the community. Please follow this tutorial to submit your modifications to PYLEECAN.

Step 7: Adding some tests

Any new feature should come with a test script. Please visit our test contribution guideline page for advice on how to write good tests.

Step 8: Adding your Slot to the GUI

Writing in process…
